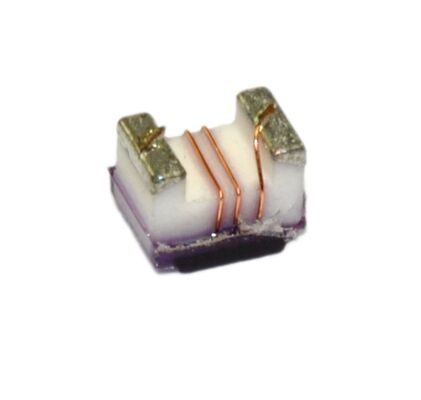

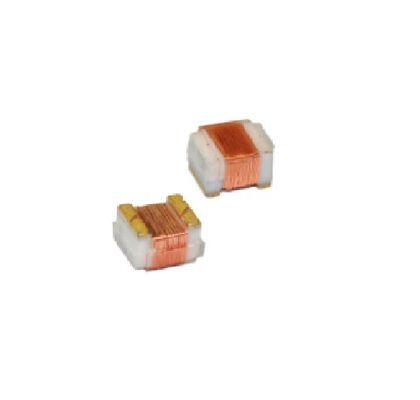

Shielded Wire Wound Chip Inductor AISC0402C Series with Wire-Wound Construction and Magnetically Shielded Design in 0402 Compact Package

5000
MOQ
Shielded Wire Wound Chip Inductor AISC0402C Series with Wire-Wound Construction and Magnetically Shielded Design in 0402 Compact Package
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Şimdi konuşalım.
Özellikleri
Teknik Özellikler
Vurgulamak:

Wire-Wound Construction Shielded Wire Wound Chip Inductor

,

Magnetically Shielded Design AISC0402C Series

,

0402 Compact Package Dip Power Inductor
Temel bilgiler
Menşe yeri: Çin
Marka adı: SHINHOM
Sertifika: RoHS
Model numarası: AISC0402C
Belge: AISC0402C Series_.pdf
Ödeme & teslimat koşulları
Teslim süresi: 2~8 hafta
Ödeme koşulları: L/C,T/T
Ürün Açıklaması
Shielded Wire Wound Chip Inductors AISC0402C Series
The AISC0402C Series shielded wire wound chip inductors are engineered for high-density electronic circuits requiring stable inductance, low DC resistance, and effective EMI suppression. Built in a compact 0402 package, this series combines wire-wound construction with magnetic shielding to deliver reliable performance in space-constrained applications.
Compared with multilayer inductors, the wire-wound construction provides superior current handling capability and improved Q characteristics, while the integrated magnetic shield minimizes magnetic flux leakage and reduces interference with surrounding components. The AISC0402C Series supports a wide inductance range, making it suitable for various signal conditioning and power-related applications across consumer, industrial, and communication electronics.
Key Features
  • Wire-Wound Construction - Provides stable inductance characteristics and better current capability than multilayer chip inductors.
  • Magnetically Shielded Design - Effectively suppresses EMI and reduces magnetic coupling to nearby components.
  • 0402 Compact Package - Ideal for high-density PCB layouts and miniaturized electronic designs.
  • Low DC Resistance (DCR) - Improves efficiency and reduces power loss in current paths.
  • Wide Inductance Range - Multiple inductance options available depending on part number.
  • High Reliability - Designed for consistent electrical performance across specified operating conditions.
  • RoHS Compliant - Meets environmental and material compliance requirements.
Applications
  • DC-DC Converters - Inductors for compact power management circuits requiring low loss and stable current handling.
  • Signal Filtering - Noise suppression and signal smoothing in analog and digital circuits.
  • RF & Communication Devices - EMI control in wireless modules and communication equipment.
  • Consumer Electronics - Smartphones, wearables, and portable devices with limited PCB space.
  • Industrial Electronics - Control boards and embedded systems requiring reliable miniature inductors.
